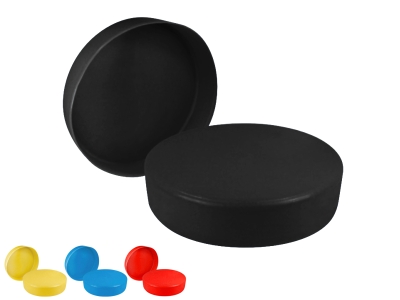

TP200 FLANGE CAP
FLANGE CAP TP200
![]()
TP200 FLANGE CAP
FLANGE CAP TP200
| |

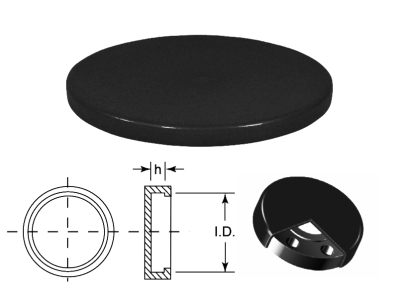

DIMENSIONS (mm) |
| PRODUCT TYPE |
DIMENSIONS NOM |
D. |
H |
CODE |
| FLANGE CAP |
1/2" 150# |
90 |
13 |
TP200-1/2" |
| FLANGE CAP |
3/4" 150# |
100 |
14 |
TP200-3/4" |
| FLANGE CAP |
1" 150# |
109 |
17 |
TP200-1" |
| FLANGE CAP |
1 1/2" 150# |
128 |
20 |
TP200-1 1/2" |
| FLANGE CAP |
2" 150# |
153 |
21 |
TP200-2" |
| FLANGE CAP |
2 1/2" 150# |
179 |
25 |
TP200-2 1/2" |
| FLANGE CAP |
3" 150# |
191 |
25 |
TP200-3" |
| FLANGE CAP |
3 1/2" 150# |
217 |
25 |
TP100-3 1/2" |
| FLANGE CAP |
4" 150# |
230 |
25 |
TP200-4" |
| FLANGE CAP |
5" 150# |
255 |
25 |
TP200-5" |
| FLANGE CAP |
6" 150# |
280 |
27 |
TP200-6" |
| FLANGE CAP |
8" 150# |
344 |
30 |
TP200-8" |
| FLANGE CAP |
10" 150# |
407 |
33 |
TP200-10" |
| FLANGE CAP |
12" 150# |
484 |
34 |
TP200-12" |
| FLANGE CAP |
14" 150# |
534 |
37 |
TP200-14" |
| FLANGE CAP |
16" 150# |
598 |
38 |
TP200.16" |
| FLANGE CAP |
1/2" 300# |
96 |
16 |
TP200-1/2" |
| FLANGE CAP |
3/4" 300# |
118 |
17 |
TP200-3/4" |
| FLANGE CAP |
1" 300# |
125 |
20 |
TP200-1" |
| FLANGE CAP |
1 1/4" 300# |
134 |
20 |
TP200-1 1/4" |
| FLANGE CAP |
1 1/2" 300# |
157 |
22 |
TP200-1 1/2" |
| FLANGE CAP |
2" 300# |
166 |
25 |
TP200-2" |
| FLANGE CAP |
2" 1/2" 300# |
191 |
27 |
TP200-2 1/2" |
| FLANGE CAP |
3" 300# |
211 |
30 |
TP200-3" |
| FLANGE CAP |
3" 1/2 300# |
215,9 |
23,9 |
TP200-3 1/2" |
| FLANGE CAP |
4" 300# |
255 |
34 |
TP200-4" |
| FLANGE CAP |
5" 300# |
280 |
37 |
TP200-5" |
| FLANGE CAP |
6" 300# |
319 |
39 |
TP200-6" |
| FLANGE CAP |
8" 300# |
382 |
43 |
TP200-8" |
| FLANGE CAP |
10" 300# |
445 |
50 |
TP200-10" |
| FLANGE CAP |
12" 300# |
522 |
53 |
TP200-12" |
| FLANGE CAP |
14" 300# |
585 |
56 |
TP200-14" |
| FLANGE CAP |
1" 600# |
125 |
20 |
TP200-1" |
| FLANGE CAP |
1 1/2 600# |
157 |
24 |
TP200-1/2" |
| FLANGE CAP |
2" 600# |
165 |
27 |
TP200-2" |
| FLANGE CAP |
3" 600# |
211 |
34 |
TP200-3" |
| FLANGE CAP |
4" 600# |
274 |
40 |
TP200-4" |
| FLANGE CAP |
5" 600# |
330,2 |
44,5 |
TP200-5" |
| FLANGE CAP |
6" 600# |
357 |
50 |
TP200-6" |
| FLANGE CAP |
8" 600# |
420 |
57 |
TP200-8" |
